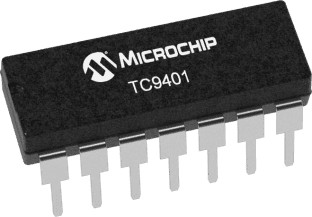

TC9401CPD - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC17770034
Category:
Active Chip
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP TC9401CPD Voltage to Frequency Converter, 100kHz, 1Hz to 100kHz, 0.01%, 8V to 15V, DIP, 14Pins
Stock Locations:
Availability:
210 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.47

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC9401CPD is a Voltage-to-Frequency (V/F) Converter utilizing low power CMOS technology. The converter accept a variable analog input signal and generate an output pulse train whose frequency is linearly proportional to the input voltage. The device can also be used as highly-accurate frequency-to-voltage (F/V) converters, accepting virtually any input frequency waveform and providing a linearly-proportional voltage output. A complete V/F or F/V system only requires the addition of two capacitors, three resistors and reference voltage.
27mW Typical low power dissipation
±25ppm/°C Typical gain temperature stability
Programmable scale factor

Show

TC9401CPD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Frequency	100 kHz
Number of Outputs	2 Output
Supply Current	10 mA
Number of Positions	14 Position
Power Dissipation	730 mW
Power Consumption	27 mW
Input Voltage (Min)	8 V
Output Voltage (Max)	18 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	8V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	8 V
	Show
Size-Length	19.05 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
