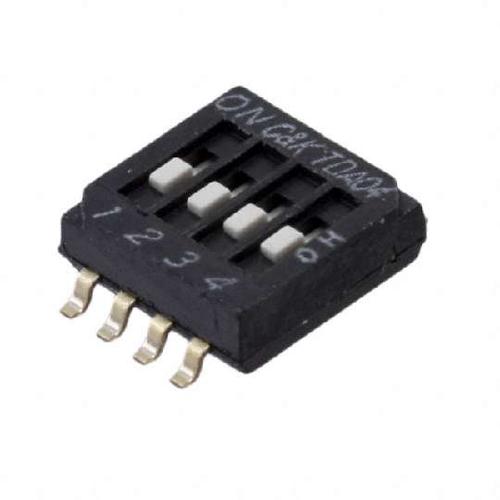

Image is for your reference only,please check specifications for details
- TDA04H0SB1R - C&K Components
-
Manufacturer:C&K Components
-
ManyChip's Part#:MC9596227
-
Category:DIP Switch, SIP Switch
-
Package:DIP-4
-
Datasheet:Datasheet 3D Model
-
Description:Switch DIP OFF ON SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD T/R
-
Stock Locations:
-
Availability:286 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.39
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Features:**
- * Bifurcated contact for increased electrical reliability
- * Process sealed for surface mount soldering and washable processing
- **Typical Applications:**
- * Hand-held electronic devices
- * Portable computer and electronic devices
- * Instrumentation and controls
TDA04H0SB1R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | DIP-4 |
| Voltage Rating (DC) | 24 V |
| Current Rating | 25 mA |
| Insulation Resistance | 100 MΩ |
| Contacts Type | SPST |
| Number of Positions | 4 Position |
| Contact Resistance | 100 mΩ |
| Current Rating (Max) | 0.025A @24VDC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 24 VDC |
| Voltage Rating (DC Max) | 24 V |
| Maximum Contact Resistance (Max) | 100 mΩ |
| Show | |
| Size-Length | 6.20 mm |
| Size-Width | 6.2 mm |
| Size-Height | 2.3 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536509065 |
| ECCN Code | EAR99 |
