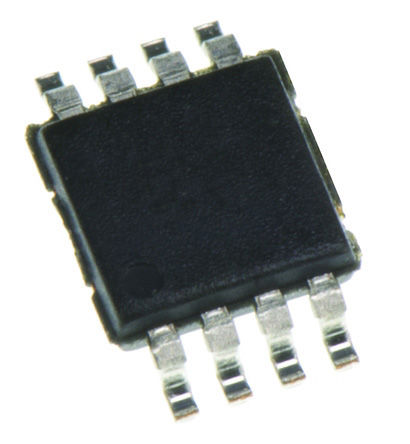

Image is for your reference only,please check specifications for details

THS4031IDGN - TI
Manufacturer:
TI
ManyChip's Part#:
MC21091736
Category:
Operational Amplifier, OP Amp IC
Package:
PowerPad-MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS4031IDGN Operational Amplifier, Single, 1 Amplifier, 100MHz, 100V/µs, ± 4.5V to ± 16V, MSOP, 8Pins
Stock Locations:
Availability:
68 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.51

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS4031IDGN is a 100MHz low noise Voltage Feedback Amplifier is ideal for applications requiring low voltage noise, including communications and imaging. The THS4031 is unity gain stable with 275MHz bandwidth. This amplifier has a high drive capability of 90mA and draw only 8.5mA supply current per channel. With -90dBc of total harmonic distortion (THD) at f = 1MHz and a very low noise of 1.6nV/√Hz, the THS4031 is ideally suited for applications requiring low distortion and low noise such as buffering analogue-to-digital converters.
Ultralow 1.6nV/√Hz voltage noise
Very low distortion
Evaluation module
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

THS4031IDGN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Supply Voltage (DC)	32.0 V
Supply Current	8.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1.8 W
Common Mode Rejection Ratio	90 dB
Input Offset Drift	2.00 µV/K
Bandwidth	100 MHz
Slew Rate	100 V/μs
Gain Bandwidth Product	120 MHz
Input Offset Voltage	500 µV
Input Bias Current	3 µA
Available Channels	S, D
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	100 MHz
Gain Bandwidth	120 MHz
Power Dissipation (Max)	1800 mW
Minimum CMRR Range	90 dB
Supply Voltage (Max)	33 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
