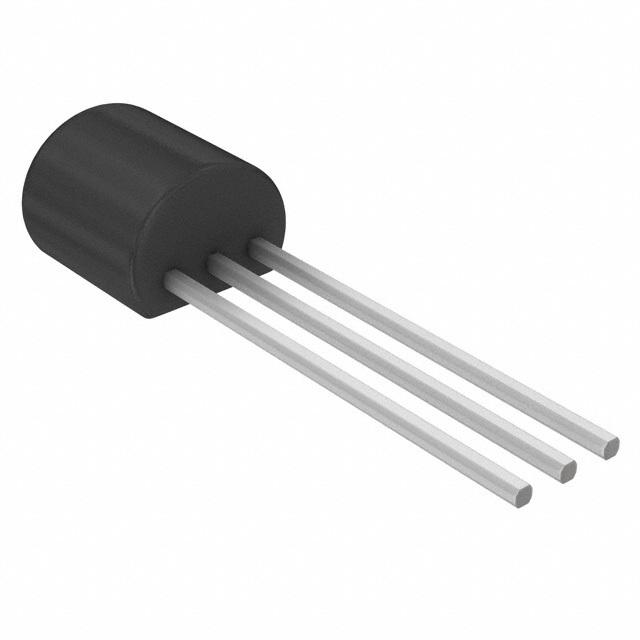

Image is for your reference only,please check specifications for details

TL317CLP - TI
Manufacturer:
TI
ManyChip's Part#:
MC24739103
Category:
Voltage Regulator
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator, Adjustable, 35V primary input, 1.25V to 32V/100mA/1 Output, TO-92-3
Stock Locations:
Availability:
225 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL317CLP is an adjustable 3-terminal Positive-Voltage Regulator capable of supplying 100mA over an output-voltage range of 1.25 to 32V. It is exceptionally easy to use and requires only two external resistors to set the output voltage. In addition to higher performance than fixed regulator, this regulator offers full overload protection available only in integrated circuits. Included on the chip is current-limiting and thermal-overload protection. All overload-protection circuitry remains fully functional, even when ADJUSTMENT is disconnected. Normally, no capacitors are needed unless the device is situated far from the input filter capacitors, in which case an input bypass is needed. An optional output capacitor can be added to improve transient response. ADJUSTMENT can be bypassed to achieve very high ripple rejection, which is difficult to achieve with standard 3-terminal regulator.
Input regulation typically 0.01% per input-voltage change
0.5% Typically output regulation
80dB Typically ripple rejection
Green product and no Sb/Br

Show

TL317CLP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Current Rating	100 mA
Number of Outputs	1 Output
Input Voltage (DC)	38.0V (max)
Output Voltage	1.2V ~ 32V
Output Current	100 mA
Number of Positions	3 Position
Quiescent Current	50.0 µA
Output Capacitor Type	Capacitor Free
voltage rating	2.00 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	35 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	32 V
Output Voltage (Min)	1.25 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	0.5 %
Supply Voltage (Max)	38 V
Supply Voltage (Min)	3.7 V
Input Voltage	5V ~ 38V
	Show
Size-Length	4.83 mm
Size-Width	3.43 mm
Size-Height	3.68 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
