TLC27M4 TI - - ManyChip Electronics

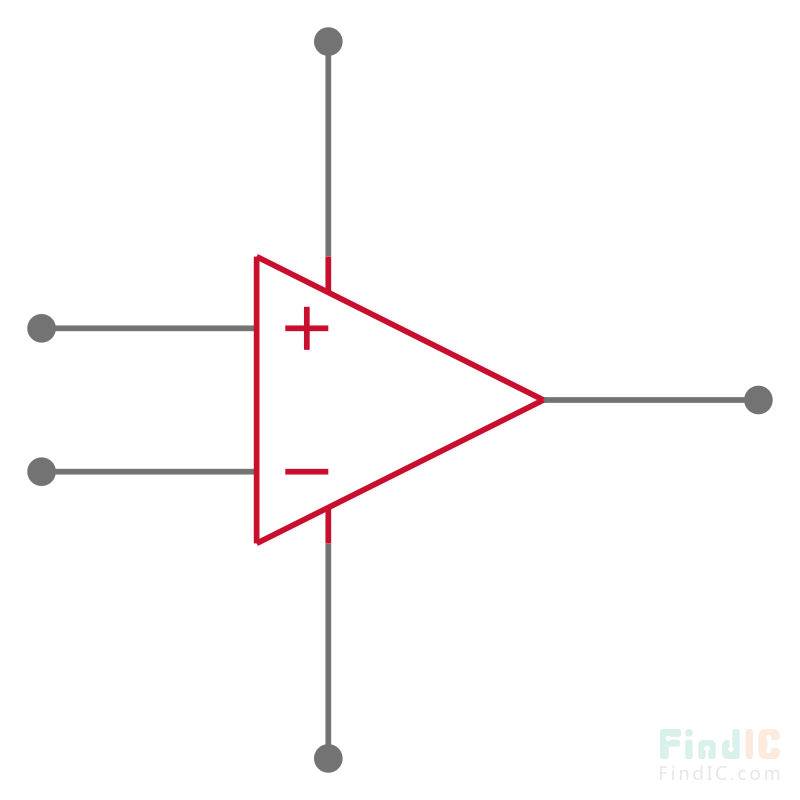

Image is for your reference only,please check specifications for details

TLC27M4 - TI
Manufacturer:
TI
ManyChip's Part#:
MC392823556
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TLC27M4 и TLC27M9 — счетверённые операционные усилители, сочетающие широкий диапазон напряжений смещения с низким дрейфом напряжения смещения, высоким входным импедансом, низким уровнем шума и скоростью, сравнимой с обычными биполярными приборами
Stock Locations:
Availability:
11 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.01

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC27M4 and TLC27M9 quad operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, low noise, and speeds comparable to that of general-purpose bipolar devices.These devices use Texas Instruments silicon-gate LinCMOSTM
LinCMOS is a trademark of Texas Instruments Incorporated. technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.
The extremely high input impedance, low bias currents, make these cost-effective devices ideal for applications that have previously been reserved for general-purpose bipolar products, but with only a fraction of the power consumption.
Four offset voltage grades are available (C-suffix and I-suffix types), ranging from the low-cost TLC27M4 (10 mV) to the high-precision TLC27M9 (900 uV). These advantages, in combination with good common-mode rejection and supply voltage rejection, make these devices a good choice for new state-of-the-art designs as well as for upgrading existing designs.
In general, many features associated with bipolar technology are available on LinCMOSTM operational amplifiers, without the power penalties of bipolar technology. General applications such as transducer interfacing, analog calculations, amplifier blocks, active filters, and signal buffering are easily designed with the TLC27M4 and TLC27M9. The devices also exhibit low voltage single-supply operation, and low power consumption, making them ideally suited for remote and inaccessible battery-powered applications. The common-mode input voltage range includes the negative rail.
A wide range of packaging options is available, including small-outline and chip-carrier versions for high-density system applications.
The device inputs and outputs are designed to withstand -100-mA surge currents without sustaining latch-up.
The TLC27M4 and TLC27M9 incorporate internal ESD-protection circuits that prevent functional failures at voltages up to 2000 V as tested under MIL-STD-883C, Method 3015; however, care should be exercised in handling these devices, as exposure to ESD may result in the degradation of the device parametric performance.
The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from -40°C to 85°C. The M-suffix devices are characterized for operation over the full military temperature range of -55°C to 125°C.
AVAILABLE OPTIONS TA
|
VIOmax
AT 25°C
| PACKAGE
| CHIP
FORM
(Y)
---|---|---|---
SMALL OUTLINE
(D)
| CHIP CARRIER
(FK)
| CERAMIC DIP
(J)
| PLASTIC DIP
(N)
| TSSOP
(PW)
0°C to 70°C
| 900 uV
| TLC27M9CD
| \--
| \--
| TLC27M9CN
| \--
| \--
2 mV
| TLC27M4BCD
| \--
| \--
| TLC27M4BCN
| \--
| \--
5 mV
| TLC27M4ACD
| \--
| \--
| TLC27M4ACN
| \--
| \--
10 mV
| TLC27M4CD
| \--
| \--
| TLC27M4CN
| TLC27M4CPW
| TLC27M4Y
-40°C to 85°C
| 900 uV
| TLC27M9ID
| \--
| \--
| TLC27M9IN
| \--
| \--
2 mV
| TLC27M4BID
| \--
| \--
| TLC27M4BIN
| \--
| \--
5 mV
| TLC27M4AID
| \--
| \--
| TLC27M4AIN
| \--
| \--
10 mV
| TLC27M4ID
| \--
| \--
| TLC27M4IN
| TLC27M41PW
| \--
-55°C to 125°C
| 900 uV
| TLC27M9MD
| TLC27M9MFK
| TLC27M9MJ
| TLC27M9MN
| \--
| \--
10 mV
| TLC27M4MD
| TLC27M4MFK
| TLC27M4MJ
| TLC27M4MN
| \--
| \--
The D and PW package is available taped and reeled. Add R suffix to the device type (e.g., TLC279CDR).
Trimmed Offset Voltage:
TLC27M9...900 uV Max at TA = 25°C,
VDD = 5 V
Input Offset Voltage Drift...Typically
0.1 uV/Month, Including the First 30 Days
Wide Range of Supply Voltages Over Specified Temperature Range:
0°C to 70°C...3 V to 16 V
-40°C to 85°C...4 V to 16 V
-55°C to 125°C...4 V to 16 V
Single-Supply Operation
Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix Types)
Low Noise...Typically 32 nV/ Hz\
at f = 1 kHz
Low Power...Typically 2.1 mW at TA=25°C, VDD = 5 V
Output Voltage Range Includes Negative Rail
High Input Impedance...1012 Typ
ESD-Protection Circuitry
Small-Outline Package Option Also Available in Tape and Reel
Designed-In Latch-Up Immunity
