Description
- Functional Description
- The TLE 4275 is a monolithic integrated low-drop voltage regulator in a 5-pin TO-package. An input voltage up to 45 V is regulated to VQ,nom = 5.0 V. The IC is able to drive loads up to 450 mA and is short-circuit proof. At overtemperature the TLE 4275 is turned off by the incorporated temperature protection. A reset signal is generated for an output voltage VQ,rt of typ. 4.65 V. The delay time can be programmed by the external delay capacitor.
- Features
- • Output voltage 5 V ± 2%
- • Very low current consumption
- • Power-on and undervoltage reset
- • Reset low down to VQ = 1 V
- • Very low-drop voltage
- • Short-circuit-proof
- • Reverse polarity proof
- • Suitable for use in automotive electronics
- • ESD protection > 4 kV
- • Green Product (RoHS compliant) version of TLE 4275
- • AEC qualified

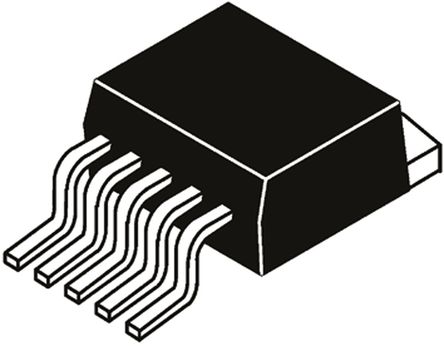

TLE4275G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TO-263-6 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 42.0V (max) |
| Output Voltage | 5 V |
| Output Current | 0.45 A |
| Quiescent Current | 180 µA |
| voltage rating | 250 mV |
| Input Voltage (Max) | 42 V |
| Input Voltage (Min) | 5.5 V |
| Output Current (Max) | 0.45 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | 2.0 % |
| Input Voltage | 45 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 9.25 mm |
| Size-Height | 4.4 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Not Recommended |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
