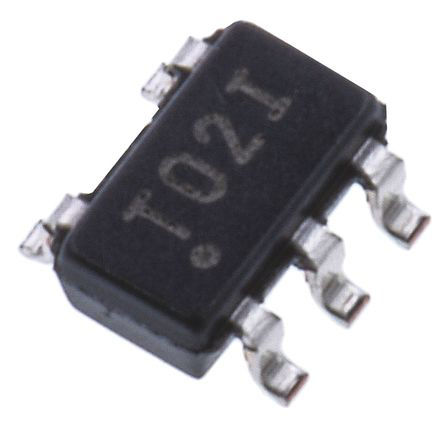

TLV1701AIDBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC12197933
Category:
Comparator, Analog Comparator IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV1701AIDBVT Analogue Comparator, Single, Micropower, 1, 560ns, 2.2V to 36V, ± 1.1V to ± 18V, SOT-23, 5Pins
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.01

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV1701AIDBVT is a Micropower Comparator that offers a wide supply range, rail-to-rail inputs, low quiescent current and low propagation delay. The rail-to-rail input stage enables detection of signals close to the supply and ground. The open collector output offers the advantage of allowing the output to be pulled to any voltage rail up to +36V above the negative power supply, regardless of the supply voltage. Low input offset voltage, low input bias currents, low supply current and open-collector configuration make the TLV1701 flexible enough to handle almost any application, from simple voltage detection to driving a single relay.
Low quiescent current (55µA per comparator)
Input common-mode range includes both rails
Low propagation delay (560ns)
Low input offset voltage (300µV)
Open collector outputs
Up to 36V above negative supply regardless of supply voltage
Green product and no Sb/Br
IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

TLV1701AIDBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Output Current	20 mA
Number of Positions	5 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
