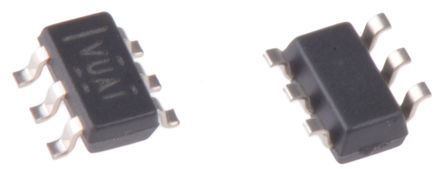

TLV61220DBVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC636865
Category:
DC to DC Converter
Package:
SOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 0.7V to 5.5V Step Up Single-Out 1.8V to 5.5V 6Pin SOT-23 T/R
Stock Locations:
Availability:
5,996 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.71

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV61220DBVR is a low input voltage Step-up Converter provides a power-supply solution for products powered by either a single-cell, two-cell or three-cell alkaline, NiCd or NiMH or one-cell Li-Ion or Li-polymer battery. Possible output currents depend on the input-to-output voltage ratio. The boost converter is based on a hysteretic controller topology using synchronous rectification to obtain maximum efficiency at minimal quiescent currents. The output voltage of the adjustable version can be programmed by an external resistor divider or is set internally to a fixed output voltage. The converter can be switched off by a featured enable pin. While being switched off, battery drain is minimized.
Up to 95% efficiency at typical operating conditions
5.5µA Quiescent current
Start-up into load at 0.7V input voltage
Operating input voltage from 0.7 to 5.5V
Pass-through function during shutdown
200mA Minimum switching current
Output overvoltage, over-temperature and input under-voltage lockout protections
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TLV61220DBVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Number of Outputs	1 Output
Output Voltage	1.8V ~ 5.5V
Output Current	200 mA
Number of Positions	6 Position
Quiescent Current	5.00 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2 MHz
Topology	Boost
Switching Current	0.4 A
Input Voltage (Max)	5.5 V
Input Voltage (Min)	0.7 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.8 V
Output Current (Max)	400 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0.7 V
Input Voltage	0.7V ~ 5.5V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
