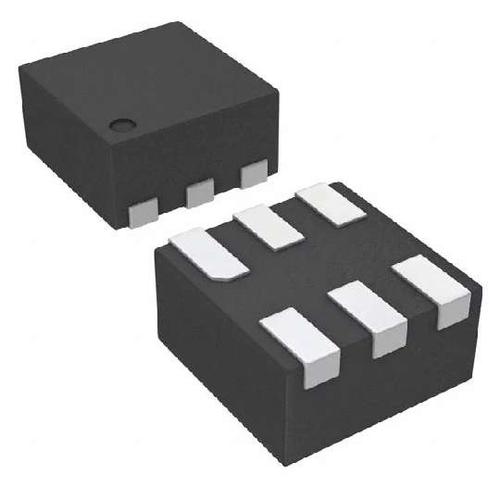

Image is for your reference only,please check specifications for details

TLV70233DSER - TI
Manufacturer:
TI
ManyChip's Part#:
MC17015593
Category:
Voltage Regulator
Package:
WFDFN-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV70233DSER Fixed LDO Voltage Regulator, 2V to 5.5V, 260mV Dropout, 3.3Vout, 300mAout, WSON-6
Stock Locations:
Availability:
1,651 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV70233DSER is a single channel low dropout (LDO) linear regulator with fixed output in 6 pin WSON package. This regulator is a low quiescent current device with excellent line and load transient performance. It is designed for power sensitive applications. A precision band-gap and error amplifier provides overall 2% accuracy. The low output noise, very high power supply rejection ratio (PSRR) and low dropout voltage of this regulator make this device as an ideal device for wide selection of battery operated handheld equipment. The TLV70233 has thermal shutdown, overcurrent protection and current limit for safety. It is stable with an effective output capacitance of only 0.1µF. This feature enables the use of cost effective capacitors that have higher bias voltages and temperature de-rating. The device regulate to specified accuracy with no output load.
Fixed output voltage of 3.3V
Very low dropout voltage of 260mV at 300mA output current
Input voltage range from 2V to 5.5V
Output current of 300mA
Low quiescent current of 35µA
High PSRR of 68dB at 1KHz
Operating temperature range from -40°C to 125°C
This device has limited built-in ESD protection. The leads should be shorted or device should be placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.

Show

TLV70233DSER Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WFDFN-6
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	300 mA
Number of Positions	6 Position
Power Dissipation	555 W
Quiescent Current	30.0 µA
Output Capacitor Type	Ceramic
voltage rating	260 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	≤5.5 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
