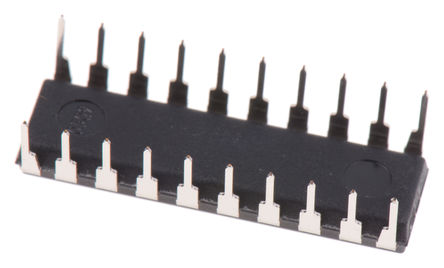

TPA6021A4N - TI
Manufacturer:
TI
ManyChip's Part#:
MC43064277
Category:
Audio Amplifier IC
Package:
PDIP-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPA6021A4N Audio Power Amplifier, AB, 2Channel, 2W, 4V to 5.5V, DIP, 20Pins
Stock Locations:
Availability:
229 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.34

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPA6021A4N is a 2W Stereo Class-AB Audio Amplifier with volume control and stereo headphone drive. The TPA6021A4 drives 2W/channel of continuous RMS power into a 4R load when utilizing a heat sink. Advanced DC volume control minimizes external components and allows BTL (speaker) volume control and SE (headphone) volume control. To ensure a smooth transition between active and shutdown modes, a fade mode ramps the volume up and down. The ability of the TPA6021A4 to easily switch between BTL and SE modes is one of its most important cost saving features. This feature eliminates the requirement for an additional headphone amplifier in applications where internal stereo speakers are driven in BTL mode but external headphone or speakers must be accommodated.
2W into 4R speakers with external heatsink
DC volume control with 2dB steps from -40 to 20dB
Fade mode
-85dB Mute mode
Differential inputs
1µA Typical shutdown current
Headphone mode
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPA6021A4N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	PDIP-20
Supply Voltage (DC)	5.50 V
Supply Current	9 mA
Number of Channels	2 Channel
Number of Positions	20 Position
Power Dissipation	1800 mW
Quiescent Current	1.00 µA
Output Power	2 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1800 mW
Supply Voltage	4V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4 V
	Show
Size-Length	26.92 mm
Size-Width	6.6 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
