Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

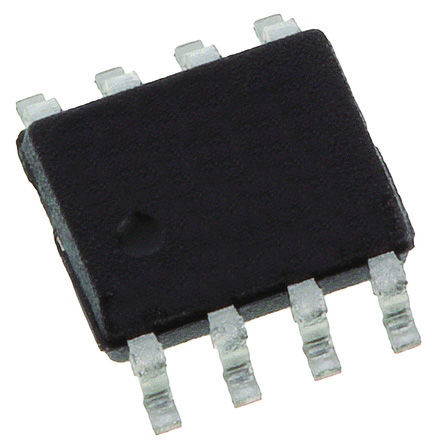

Case/Package | SOIC-8 |
Supply Voltage (DC) | 5.50V (max) |
Number of Outputs | 1 Output |
Input Voltage (DC) | 5.50 V |
Output Voltage | ≤5.80 V |
Output Current | 200 mA |
Number of Positions | 8 Position |
Drain to Source Resistance (on) (Rds) | 33.0 mΩ |
Power Dissipation | 725 mW |
Rise Time | 8600 µs |
Input Voltage (Max) | 5.5 V |
Input Voltage (Min) | 2.7 V |
Output Voltage (Max) | 5.8 V |
Output Current (Max) | 200 mA |
Fall Time | 3400 µs |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Power Dissipation (Max) | 725 mW |
Supply Voltage (Max) | 5.5 V |
Supply Voltage (Min) | 2.7 V |
Input Voltage | 5.5 V |
Show | |
Size-Length | 4.9 mm |
Size-Width | 3.91 mm |
Size-Height | 1.58 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Cut Tape (CT) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2014/12/17 |
ECCN Code | EAR99 |
