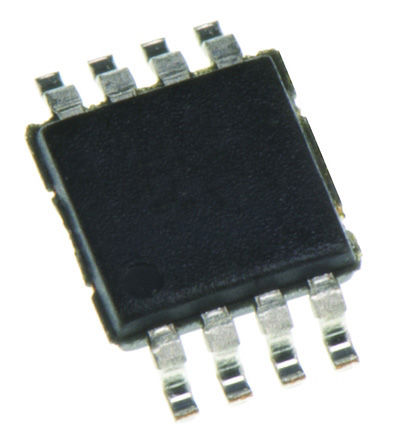

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70-mΩ N-channel MOSFET power switches for power-distribution systems that require single or dual power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.
FEATURES
• 70-mΩ High-Side MOSFET
• 1.5-A Continuous Current
• Thermal and Short-Circuit Protection
• Accurate Current Limit (1.6 A min, 2.6 A max)
• Operating Range: 2.7 V to 5.5 V
• 0.6-ms Typical Rise Time
• Undervoltage Lockout
• Deglitched Fault Report (OC)
• No OC Glitch During Power Up
• 1-μA Maximum Standby Supply Current
• Reverse Current Blocking
• TPS2060/64 Temperature Range: 0°C to 70°C
• TPS2068/69 DGN Package Temperature Range: –40°C to 85°C
• TPS2068 D Package Temperature Range: 0°C to 70°C
• UL Listed – File No. E169910
• TPS2068/69: CB Certified
APPLICATIONS
• Heavy Capacitive Loads
• Short-Circuit Protections

Show

TPS2064DGN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Supply Voltage (DC)	5.50V (max)
Number of Outputs	2 Output
Input Voltage (DC)	5.50 V
Output Voltage	6.00 V
Output Current	1.50 A
Power Dissipation	1370 mW
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1.37 W
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1.02 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
