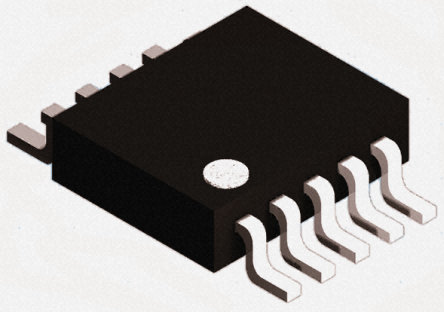

Image is for your reference only,please check specifications for details

TPS2491DGSR - TI
Manufacturer:
TI
ManyChip's Part#:
MC2567308
Category:
Battery Management IC
Package:
VSSOP-10
Datasheet:
Datasheet 3D Model
Description:
Hot Swap Controller 1CH 80V N-Channel Positive High Voltage 10Pin VSSOP T/R
Stock Locations:
Availability:
1,735 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 33.42

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Speed and convenience is what you get when you use this positive high voltage TPS2491DGSR hot swap controller IC from Texas Instruments. It will eliminate the need to restart and also install circuit boards to system backplanes. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This hot swap controller has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 9 V and a maximum of 80 V.

Show

TPS2491DGSR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSSOP-10
Supply Voltage (DC)	9.00V (min)
Number of Outputs	1 Output
Input Voltage (DC)	80.0 V
Output Voltage	16.0 V
Supply Current	1 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	10 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	9V ~ 80V
Supply Voltage (Max)	80 V
Supply Voltage (Min)	9 V
Input Voltage	80 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
