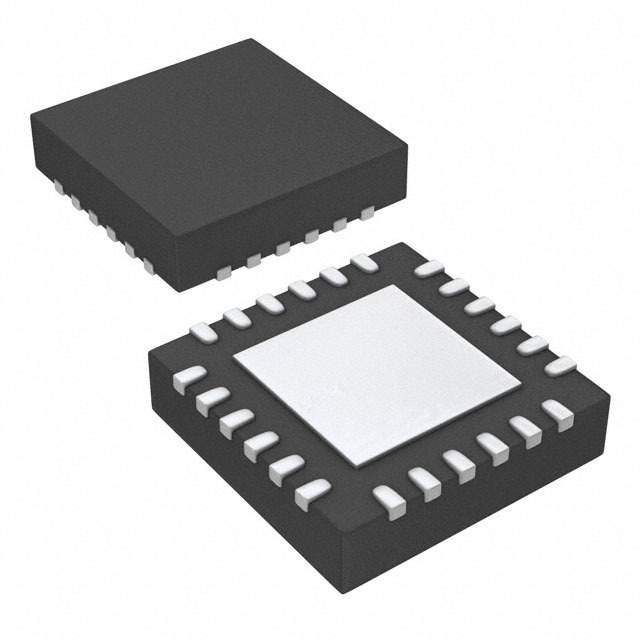

- TPS51123RGER - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC38052842
-
Category:Voltage Regulator
-
Package:VQFN-24
-
Datasheet:Datasheet 3D Model
-
Description:DC-DC Controller (External Switch) Dual-Synchronous, Step-Down Controller w/ Out-of-Audio Operation, 100mA LDOs for Notebook Sys. Pwr DC DC Cntrlr Dual-OUT Synchronous Step Down Controller/PWM DC to DC Controller 5.5V to 28V Input 24Pin VQFN EP T/R
-
Stock Locations:
-
Availability:296 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.88
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS51123 is a cost effective, dual-synchronous buck controller targeted for notebook system power
- supply solutions. It provides 5-V and 3.3-V LDOs and requires few external components. The TPS51123
- supports high efficiency, fast transient responses and provides a combined power-good signal.
- FEATURES
- • Wide-Input Voltage Range: 5.5 V to 28 V
- • Output Voltage Range: 2 V to 5.5 V
- • Built-in 100-mA 5-V/3.3-V LDO with Switches
- • Built-in 1% 2-V Reference Output
- • With/Without Out-of-Audio™ Mode Selectable Light-Load and PWM only Operation
- • Internal 1.6-ms Voltage Servo Softstart
- • Adaptive On-Time Control Architecture with Four Selectable Frequency Setting
- • 4500 ppm/°C RDS(on) Current Sensing
- • Built-In Output Discharge
- • Power Good Output
- • Built-in OVP/UVP/OCP
- • Thermal Shutdown (Non-latch)
- • 24-Pin QFN (RGE) Package
- APPLICATIONS
- • Notebook Computers
- • I/O Supplies
- • System Power Supplies
TPS51123RGER Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | VQFN-24 |
| Number of Outputs | 4 Output |
| Output Voltage | 2V ~ 5.5V |
| Power Dissipation | 1850 mW |
| Quiescent Current | 550 µA |
| Number of Regulated Outputs | 2 Output |
| Switching Frequency | 460 kHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 28 V |
| Input Voltage (Min) | 5.5 V |
| Output Current (Max) | 20 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1850 mW |
| Supply Voltage | 5.5V ~ 28V |
| Input Voltage | 5.5V ~ 28V |
| Show | |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
