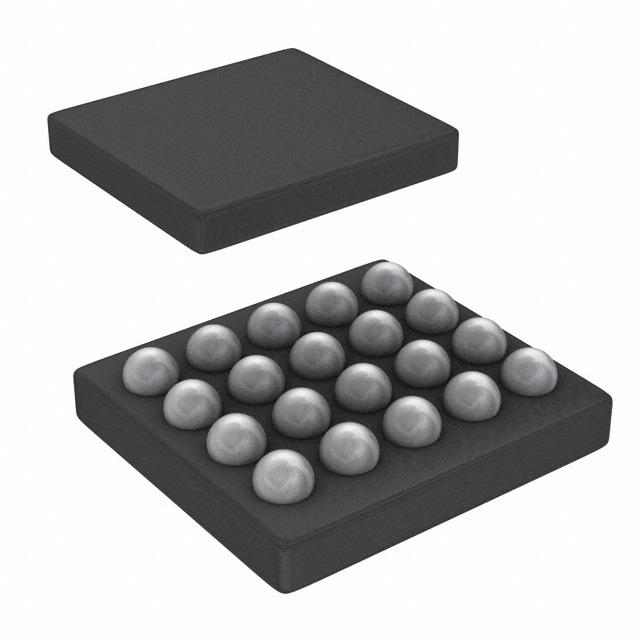

Image is for your reference only,please check specifications for details

TPS63010YFFR - TI
Manufacturer:
TI
ManyChip's Part#:
MC40774400
Category:
Voltage Regulator
Package:
UFBGA-20
Datasheet:
Datasheet 3D Model
Description:
Buck-Boost Regulator High Efficient Single Inductor Buck-Boost Converter with 2A Switches Conv DC-DC 2V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 1.2V to 5.5V 1.2A 20Pin DSBGA T/R
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS63010YFFR is a highly-efficient single inductor Buck-boost Converter with 2A switches. The TPS6301x device provide a power supply solution for products powered by either a two-cell/three-cell alkaline, NiCd/NiMH battery or one-cell Li-ion/Li-polymer battery. Output current can go as high as 1200mA while using a single-cell Li-ion/Li-polymer battery and discharge it down to 2.5V or lower. The buck-boost converter is based on a fixed-frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load current, the converter enters power save mode to maintain high efficiency over a wide load current range. The power save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2200mA. The output voltage is programmable using an external resistor divider or is fixed internally on the chip.
Automatic transition between step-down and boost mode
Power save mode for improved efficiency at low-output power
Forced fixed frequency operation and synchronization possible
Load disconnect during shutdown
Output overvoltage protection
Over-temperature protection
Up to 96% efficiency
Up to 800mA output current at 3.3V in boost mode (VIN>2.4V)
<50µA Quiescent current
Green product and no Sb/Br

Show

TPS63010YFFR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	UFBGA-20
Frequency	2.40 MHz
Number of Outputs	1 Output
Output Voltage	1.2V ~ 5.5V
Output Current	1.2 A
Number of Positions	20 Position
Quiescent Current	40.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.4 MHz
Switching Current	2.2 A
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.2 V
Output Current (Max)	1.2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2 V
Input Voltage	2V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
