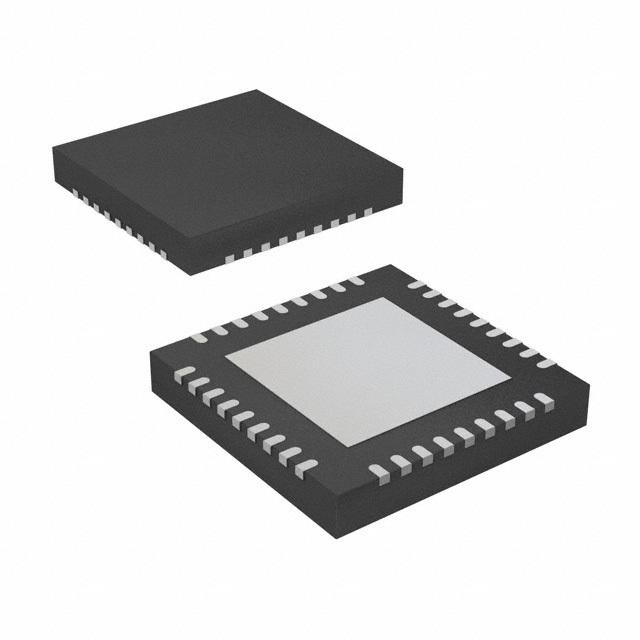

Image is for your reference only,please check specifications for details
- TPS65279RHHR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC35483961
-
Category:DC to DC Converter
-
Package:VQFN-36
-
Datasheet:Datasheet 3D Model
-
Description:4.5V to 18V Input, Dual 5A Synchronous Step-Down Converter 36-VQFN -40℃ to 125℃
-
Stock Locations:
-
Availability:270 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.67
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TPS65279 is a monolithic dual synchronous buck converter with wide 4.5-V to 18-V operating input voltage range that encompassed most intermediate bus voltage operating off 5-, 9-, 12- or 15-V power bus or battery. The converter with constant frequency peak current mode control is designed to simplify its application while giving the designers options to optimize their usage according to the target applications.
- Two bucks in TPS65279 can be paralleled to delivery up to 10-A load current by using current sharing mode, connect ISHARE pin high. Two phase operation in current sharing reduces system filtering capacitance and inductance, alleviates EMI and improves output voltage ripple and noise.
- TPS65279 features a dedicated enable pin. An independent soft-start pin provides flexibility in power up programmability. Constant frequency peak current mode control simplifies the compensation and provides fast transient response. Cycle-by-cycle overcurrent protection and hiccup mode operation limit MOSFET power dissipation in short circuit or over loading fault conditions.
- Low-side reverse overcurrent protection also prevents excessive sinking current from damaging the converter. TPS65279 also features a light load pulse skipping mode (PSM) controlled by MODE pin configuration.
- The TPS65279 is available in a 32-pin thermally-enhanced HTSSOP (DAP) package and 36-pin 6-mm × 6-mm VQFN (RHH) package.
TPS65279RHHR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 36 Pin |
| Case/Package | VQFN-36 |
| Number of Outputs | 2 Output |
| Output Voltage | 0.6V ~ 9V |
| Output Current | 5 A |
| Quiescent Current | 10.0 mA |
| Number of Regulated Outputs | 2 Output |
| Switching Frequency | 200kHz ~ 1.6MHz |
| Topology | Buck |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 15 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 18 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
