Description
- The TPS709xx series of linear regulators are ultralow, quiescent current devices designed for power-sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit, and reverse-current protections for added safety.
- These regulators can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical.
- The TPS709xx series is available in WSON-6 and SOT-23-5 packages.

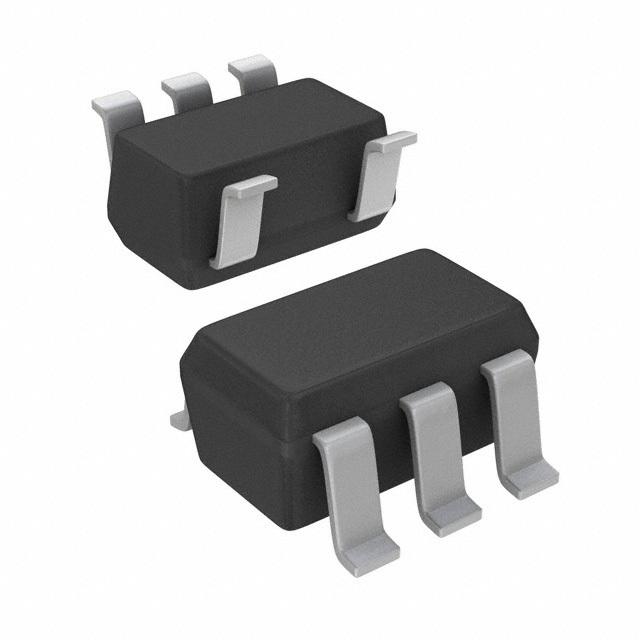

TPS70936DBVR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.6 V |
| Output Current | 150 mA |
| Supply Current | 2.05µA ~ 350µA |
| Quiescent Current | 1.00 µA |
| Output Capacitor Type | Ceramic |
| voltage rating | 0.245V @50mA |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 30 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Min) | 3.6 V |
| Output Current (Max) | 0.15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | ≤30 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
