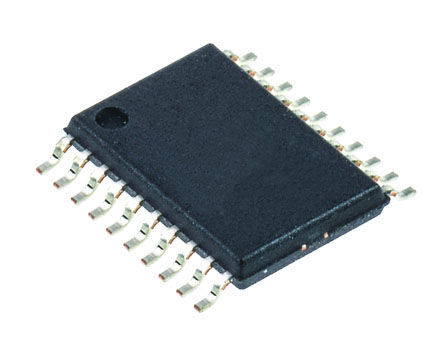

Image is for your reference only,please check specifications for details

TPS76833QPWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC25395637
Category:
Voltage Regulator
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS76833QPWP Fixed LDO Voltage Regulator, 2.7V to 10V In, 230mV Dropout, 3.3V/1A Out, TSSOP-20
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.8

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This LDO TPS76833QPWP linear regulator from Texas Instruments acts like a variable resistor to maintain a steady voltage level. This device has a maximum power dissipation of 4100 mW. Its typical dropout voltage at current is 0.35@1A V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 1 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 10 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 3mV(Typ) and line regulation of 0.01%/V(Typ). Its maximum power dissipation is 4100 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.575@1A V.

Show

TPS76833QPWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Power Rating	4.1 W
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	3.3 V
Output Current	1 A
Supply Current	125 µA
Number of Positions	20 Position
Power Dissipation	4.1 W
Quiescent Current	0.085 mA
Output Capacitor Type	Tantalum
voltage rating	230 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	4100 mW
Accuracy	±2 %
Input Voltage	≤10 V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
