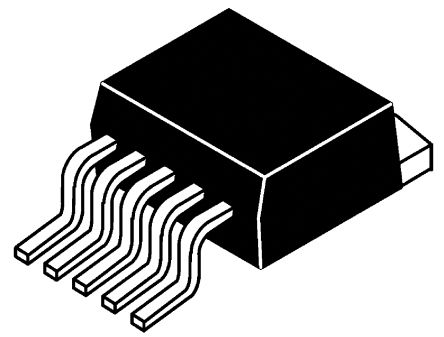

TPS7A4501KTTR - TI
Manufacturer:
TI
ManyChip's Part#:
MC5306910
Category:
Voltage Regulator
Package:
TO-263-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 1.5A, Adj. (1.21V to 20V), Low Noise, Fast Transient Response LDO Regulator Pos 1.21V to 20V 1.5A 6Pin(5+Tab) TO-263 T/R
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 19.63

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS7A4501KTTR is a low-dropout (LDO) Regulator optimized for fast transient response. The device can supply 1.5A of output current with a dropout voltage of 300mV. Operating quiescent current is 1mA, dropping to less than 1µA in shutdown. Quiescent current is well controlled, it does not rise in dropout as with any other regulator. Output voltage range is from 1.21 to 20V. The regulator is stable with output capacitance as low as 10µF. Small ceramic capacitors can be used without the necessary addition of ESR as is common with other regulator. An internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse-current protection. The device is protected against both reverse input and reverse output voltages. In battery-backup applications where the output can be held up by a backup battery when the input is pulled to ground, the device acts as if it has a diode in series with its output and prevents reverse current flow.
No protection diodes needed
Controlled quiescent current in dropout
1% at 25°C High output voltage accuracy
Green product and no Sb/Br

Show

TPS7A4501KTTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Number of Outputs	1 Output
Output Voltage	1.21V ~ 20V
Output Current	1.5 A
Supply Current	1.5mA ~ 90mA
Number of Positions	5 Position
Quiescent Current	1 mA
Output Capacitor Type	Ceramic
voltage rating	300 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	20 V
Input Voltage (Min)	1.9 V
Output Voltage (Max)	20 V
Output Voltage (Min)	1.21 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.1V ~ 20V
	Show
Size-Length	10.16 mm
Size-Width	8.42 mm
Size-Height	4.58 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
