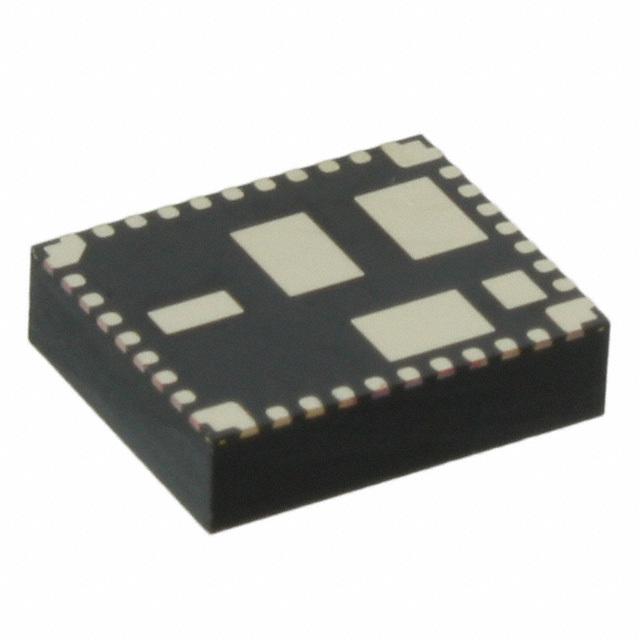

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS84250 is an easy-to-use integrated power solution that combines a 2.5-A DC/DC converter with an inductor and passives into a low profile, QFN package. This total power solution allows as few as five external components and eliminates the loop compensation and magnetics part selection process.
- The small 9 mm × 11 mm × 2.8 mm, QFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation capability. The TPS84250 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems. Advanced packaging technology affords a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
TPS84250RKGT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 41 Pin |
| Case/Package | BQFN-41 |
| Power Rating | 38 W |
| Number of Outputs | 1 Output |
| Output Voltage | 2.5V ~ 15V |
| Output Current | 2.5 A |
| Number of Positions | 41 Position |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 400kHz, 1000kHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 50 V |
| Input Voltage (Min) | 7 V |
| Output Voltage (Max) | 15 V |
| Output Voltage (Min) | 2.5 V |
| Output Current (Max) | 2.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 7V ~ 50V |
| Show | |
| Size-Height | 2.85 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
