TS922IDT ST Microelectronics - Operational Amplifiers(General Purpose)

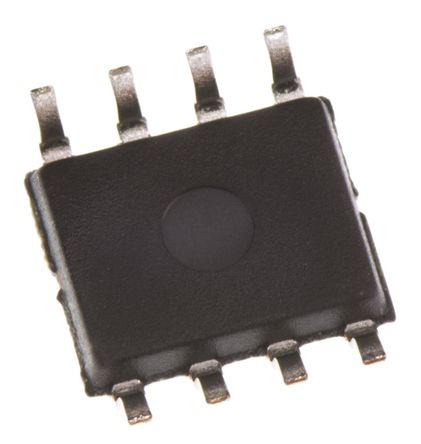

Image is for your reference only,please check specifications for details

TS922IDT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC499439
Category:
Operational Amplifiers(General Purpose)
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TS922IDT – операционный усилитель, двойной тип, частота работы 4 МГц, количество усилителей – 2, скорость обработки сигналов – 1,3 В/с, напряжение питания от 2,7 В до 12 В, форма корпуса SOIC, количество контактов – 8.
Stock Locations:
Availability:
5,430 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

TS922IDT – это двойной операционный усилитель с высоким током выходного сигнала. Его высокий ток выходного сигнала позволяет работать при низких импедансах нагрузки. Этот усилитель оптимизирован и предназначен для использования при напряжении 3 и 5 В. Это отличный вариант для высококачественных аудиосистем с низким напряжением питания или работающих от батареи.
Входные и выходные сигналы находятся на уровне рейла.
Низкая искаженность сигнала.
Иммунитет к латчи-упусканию.
Внутренняя защита от электростатического разряда напряжением 2 кВ.
Устройство чувствительное к электростатическим разрядам; необходимо соблюдать меры предосторожности при обращении с ним.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	80 mA
Supply Current	2 mA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Common Mode Rejection Ratio	80 dB
Bandwidth	4 MHz
Slew Rate	1.30 V/μs
Gain Bandwidth Product	4 MHz
Input Offset Voltage	3 mV
Input Bias Current	15 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	4 MHz
Minimum CMRR Range	60 dB
Supply Voltage	2.7V ~ 12V
	Show
Size-Length	4.9 mm
Size-Width	3.9 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
