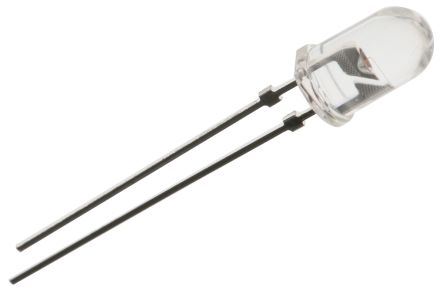

Image is for your reference only,please check specifications for details
- TSHG5410 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC16848437
-
Category:LEDs
-
Package:T-1
-
Datasheet:Datasheet 3D Model
-
Description:Инфракрасный передатчик; диаметр 5 мм; длина волны 850 нм; прозрачный; мощность 90 мВт; угол направления излучения 18°; тип крепления — тангенциально-термический; сопротивление тока 100 мА
-
Stock Locations:
-
Availability:1,320 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.78
Updated at 14/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Инфракрасная диодная пленка с длиной волны 850 нм, сопротивлением тока 100 мА и углом направления излучения ±18°; тип крепления — через отверстие; высокоскоростная инфракрасная диодная пленка – T-1 3/4
TSHG5410 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | T-1 |
| Power Rating | 180 mW |
| Number of Positions | 2 Position |
| Forward Voltage | 1.5 V |
| Wavelength | 850 nm |
| Viewing Angle | 18° |
| Peak Wavelength | 850 nm |
| Power Dissipation | 180 W |
| Rise Time | 20 ns |
| Test Current | 100 mA |
| Forward Current | 100 mA |
| Forward Current (Max) | 100 mA |
| Fall Time | 13 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Power Dissipation (Max) | 180 mW |
| Show | |
| Size-Height | 8.7 mm |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
