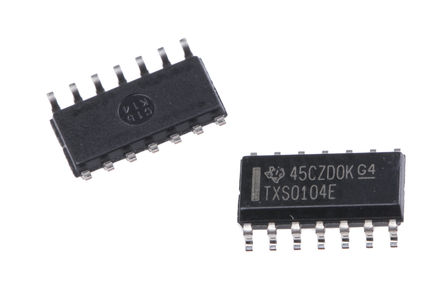

- TXS0104ED - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4621519
-
Category:Voltage Level Translator IC
-
Package:SOIC-14
-
Datasheet:Datasheet 3D Model
-
Description:Voltage Level Translator, Bidirectional, 4Input, 1mA, 165ns, 24Mbps, 1.65V to 3.6V, SOIC-14
-
Stock Locations:
-
Availability:192 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.06
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TXS0104ED is a 4-bit Bidirectional Voltage-level Shifter for open-drain and push-pull applications. This non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA and accepts any supply voltage from 1.65 to 3.6V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB and accepts any supply voltage from 2.3 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2, 1.5, 1.8, 2.5, 3.3 and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104E is designed so that the OE input circuit is supplied by VCCA. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor. The minimum value of the resistor is determined by the current-sourcing capability of the driver.
- No direction-control signal needed
- Maximum data rates (24Mbps (push pull), 2Mbps (open drain))
- 1.65 to 3.6V on A port and 2.3 to 5.5V on B port (VCCA
- No power-supply sequencing required, either VCCA or VCCB can be ramped first
- Latch-up performance exceeds 100mA per JESD 78, class II
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TXS0104ED Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | SOIC-14 |
| Supply Voltage (DC) | 1.65V (min) |
| Output Current | 1 mA |
| Supply Current | 12.0 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 14 Position |
| Number of Bits | 4 Bit |
| Data Rate | 24.0 Mbps |
| Rise Time | 4.80 ns |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Output Channels | 1 Channel |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 8.65 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
