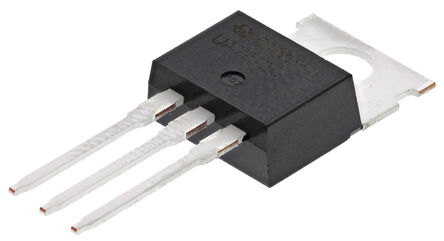

Image is for your reference only,please check specifications for details

UA7812CKCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC3063075
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UA7812CKCT Linear Voltage Regulator, 7812, Fixed, 14.5V To 30V In, 12V And 1.5A Out, TO-220-3
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UA7812CKCT is a 3-pin 1.5A Fixed 12V Positive Voltage Regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. This regulator can deliver up to 1.5A of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make them immune to overload. In addition to use as fixed-voltage regulators, this device can be used with external components to obtain adjustable output voltages and current and also can be used as the power-pass element in precision regulator.
3-terminal regulator
Internal thermal-overload protection
High power-dissipation capability
Internal short-circuit current limiting
Output transistor safe-area compensation
Output capacitor not needed for stability
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

UA7812CKCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	15 W
Number of Outputs	1 Output
Output Voltage	12 V
Output Current	1.5 A
Number of Positions	3 Position
Quiescent Current	8 mA
Output Capacitor Type	Capacitor Free
voltage rating	2V @1A
Number of Regulated Outputs	1 Output
Input Voltage (Max)	30 V
Input Voltage (Min)	14.5 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	14.5V ~ 30V
	Show
Size-Length	10.67 mm
Size-Width	8.79 mm
Size-Height	4.65 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
