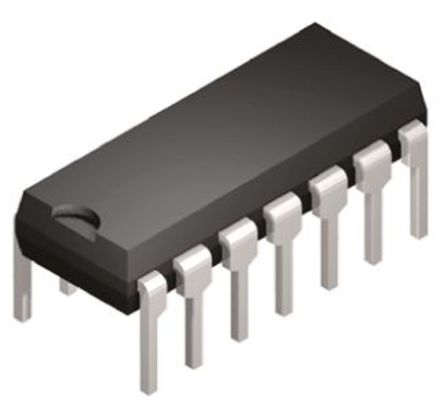

Image is for your reference only,please check specifications for details

VFC320CP - TI
Manufacturer:
TI
ManyChip's Part#:
MC16791331
Category:
Active Chip
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS VFC320CP Voltage to Frequency Converter, Motor Speed Monitor and Control, 1MHz, 0Hz to 1MHz, 0.1%
Stock Locations:
Availability:
201 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The VFC320 monolithic voltage-to-frequency and frequency-to-voltage converter provides a simple low cost method of convert ing analog signals into digital pulses. The digital output is an open collector and the digital pulse train repetition rate is proportional to the amplitude of the analog input voltage. Output pulses are compatible with TTL, and CMOS logic families.
FEATURES
●HIGH LINEARITY: 12 to 14 bits
±0.005% max at 10kHz FS
±0.03% max at 100kHz FS
±0.1% typ at 1MHz FS
●V/F OR F/V CONVERSION
●6-DECADE DYNAMIC RANGE
●GAIN DRIFT: 20ppm/°C max
●OUTPUT TTL/CMOS COMPATIBLE
APPLICATIONS
●INEXPENSIVE A/D AND D/A CONVERTER
●DIGITAL PANEL METERS
●TWO-WIRE DIGITAL TRANSMISSION WITH NOISE IMMUNITY
●FM MOD/DEMOD OF TRANSDUCER SIGNALS
●PRECISION LONG TERM INTEGRATOR
●HIGH RESOLUTION OPTICAL LINK FOR ISOLATION
●AC LINE FREQUENCY MONITOR
●MOTOR SPEED MONITOR AND CONTROL

Show

VFC320CP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Frequency	1 MHz
Bandwidth	1.00 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
