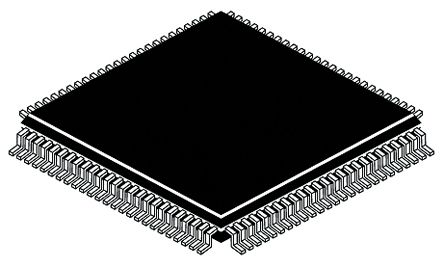

Image is for your reference only,please check specifications for details
- XMC4800F100K2048AAXQMA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC14568100
-
Category:Microcontroller, MCU IC
-
Package:PG-LQFP-100-25
-
Datasheet:Datasheet 3D Model
-
Description:MCU 32Bit XMC4000 ARM Cortex M4 RISC 2048KB Flash 3.3V 100Pin LQFP EP T/R
-
Stock Locations:
-
Availability:6 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 13.7
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- ARM ® Cortex ®-M4 @ 144MHz
- 2048kB Flash, 352kB RAM
- Data and IP Protection on Flash
- EtherCAT ® node
- 6 x CAN nodes
- EthernetMAC, USB-OTG, SD/MMC
- 6 channel USIC (configurable to SPI, UART, IIC, IIS)
- External Bus Unit
- 4 x 12-bit ADC, 18 input channels, 4 x parallel sampling and conversion
- 2 channel 12bit DAC
- 4 channel ∆Σ Demodulator
- 24 x 16-bit special purpose timers, dead time generation
- 2 x Position Interface
- Watch Dog Timer, Real Time Clock
- XMC4000 Functional Safety Package
- LQFP100
- -40 - 125°C
XMC4800F100K2048AAXQMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | PG-LQFP-100-25 |
| Operating Voltage | 3.3 V |
| Number of Positions | 100 Position |
| Clock Speed | 144 MHz |
| RAM Memory Size | 352 kB |
| Number of Bits | 32 Bit |
| Power Dissipation | 1400 mW |
| Number of ADCs | 4 ADC |
| Number of Inputs and Outputs | 75 Input IO |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1400 mW |
| Number of DACs | 1 DAC |
| Supply Voltage | 3.13V ~ 3.63V |
| Supply Voltage (Max) | 3.63 V |
| Supply Voltage (Min) | 3.13 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
