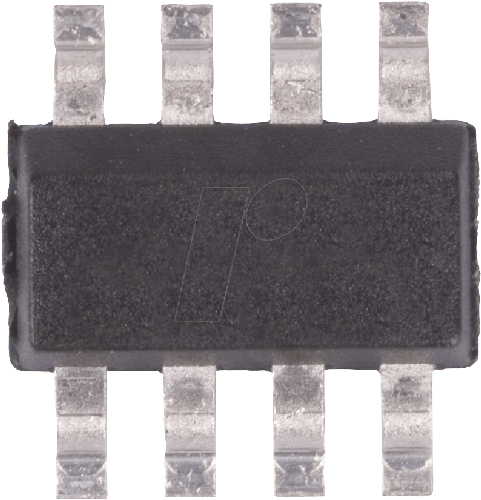

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZDT6790TA is a 40V Complementary Medium Power High Gain Transistor with matte tin plated terminals.
AEC-Q101 qualified
UL94V-0 Flammability rating

Show

ZDT6790TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOT-223-8
Frequency	150 MHz
Current Rating	2.00 A
Number of Positions	8 Position
Polarity	NPN, PNP
Power Dissipation	2.75 W
Gain Bandwidth Product	150 MHz
Breakdown Voltage (Collector to Emitter)	45V, 40V
Continuous Collector Current	2A
hFE Min	150
hFE Max	500
Input Power (Max)	2.75 W
DC Current Gain (hFE)	500
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2750 mW
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.6 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
