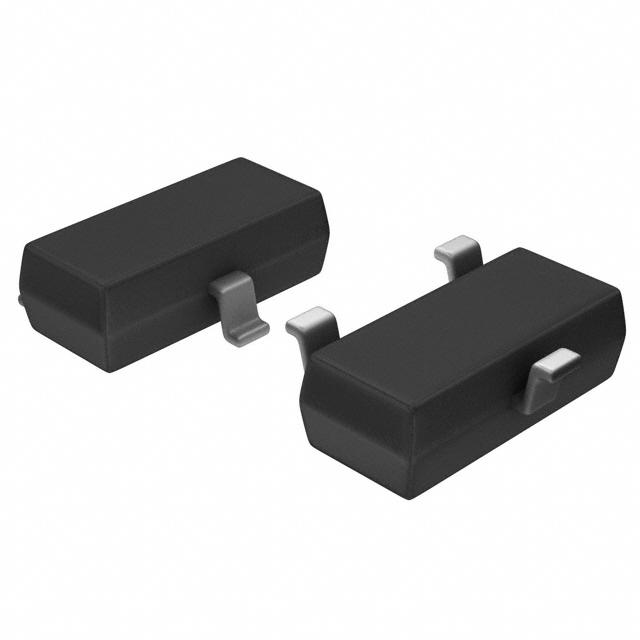

- ZXCT1009FTA - Diodes
-
Manufacturer:Diodes
-
ManyChip's Part#:MC2245200
-
Category:Power Management IC
-
Package:SOT-23-3
-
Datasheet:Datasheet 3D Model
-
Description:ZXCT1009 Series 300kHz 4uA 2.5 to 20V High-Side Current Monitor - SOT-23
-
Stock Locations:
-
Availability:1,148 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.35
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ZXCT1009 Series 300 kHz 4 uA 2.5 to 20 V High-Side Current Monitor - SOT-23
ZXCT1009FTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Supply Voltage (DC) | 20.0V (max) |
| Output Current | 9.98 mA |
| Number of Positions | 3 Position |
| Input Current | 100 nA |
| Power Dissipation | 450 mW |
| Quiescent Current | 4 µA |
| Bandwidth | 2 MHz |
| Gain Bandwidth Product | 2 MHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 450 mW |
| Accuracy | ±1 % |
| Supply Voltage | 2.5V ~ 20V |
| Supply Voltage (Max) | 20 V |
| Supply Voltage (Min) | 2.5 V |
| Input Voltage | 2.5V ~ 20V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
