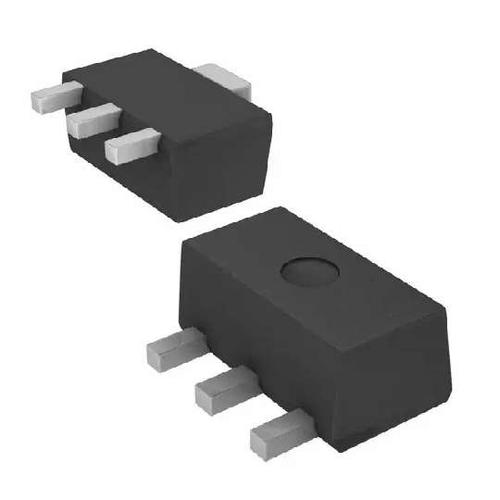

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ZXMN6A07ZTA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-89-3
Voltage Rating (DC)	60.0 V
Current Rating	1.20 A
Drain to Source Resistance (on) (Rds)	450 mΩ
Polarity	N-Channel
Power Dissipation	2.6 W
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	2.20 A
Rise Time	1.4 ns
Input Capacitance (Ciss)	166pF @40V(Vds)
Input Power (Max)	1.5 W
Fall Time	2 ns
Power Dissipation (Max)	2600 mW
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
