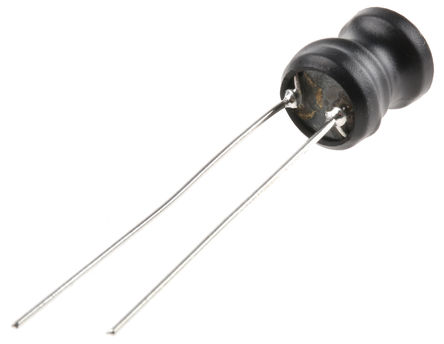

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Jump-start your electrical design by including this general purpose 13R223C leaded inductor from Murata Power Solutions. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -40 °C to 85 °C. It has an inductance of 22u H. Its test frequency is 1K Hz. This device utilizes wirewound technology. It has a tolerance of 10%. This product is 13.5 mm tall with a diameter of 9.5 mm. This leaded inductor has a maximum DC current of 2 A with a maximum resistance of 70m Ohm.
13R223C Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Current Rating | 2 A |
| Capacitance Tolerance | ±10 % |
| Inductance | 22 µH |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 kHz |
| DC Resistance (DCR) | ≤70 mΩ |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.07 Ω |
| Show | |
| Size-Height | 13.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
