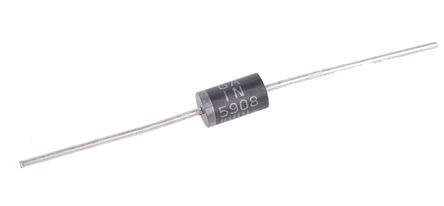

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1N5908G is a MOSORB® unidirectional Zener Transient Voltage Suppressor (TVS) with void‐free transfer‐moulded thermosetting plastic case, all external surfaces are corrosion-resistant and leads are readily solderable finish. The MOSORB device is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low Zener impedance and fast response time.
Cathode indicated by polarity band
20°C/W Junction-to-lead thermal resistance
200A at 25°C Forward surge current

Show

1N5908G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Halogen Free Status	Halogen Free
Breakdown Voltage	6 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	1500 W
Clamping Voltage	8.5 V
Max Repetitive Reverse Voltage (Vrrm)	5V
Test Current	1 mA
Peak Pulse Power	1500 W
Min Breakdown Voltage	6 V
Reverse Breakdown Voltage	6 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 175℃
	Show
Size-Length	9.5 mm
Operating Temperature	-65℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
