Description

The Power 4 A, 80 V NPN Darlington Bipolar Power Transistor is designed for general purpose amplifier and low speed switching applications.
Features
---
|
High DC Current Gain -
hFE = 2000 (Typ) @ IC = 2.0 Adc
Collector-Emitter Sustaining Voltage - @ 100 mAdc
VCEO(sus) = 60 Vdc (Min) - 2N6035, 2N6038
VCEO(sus) = 80 Vdc (Min) - 2N6036, 2N6039
Forward Biased Second Breakdown Current Capability
IS/b = 1.5 Adc @ 25 Vdc
Monolithic Construction with Built-in Base-Emitter
Resistors to Limit Leakage Multiplication
Space-Saving High Performance-to-Cost Ratio
TO-225AA Plastic Package
Pb-Free Packages are Available

Show

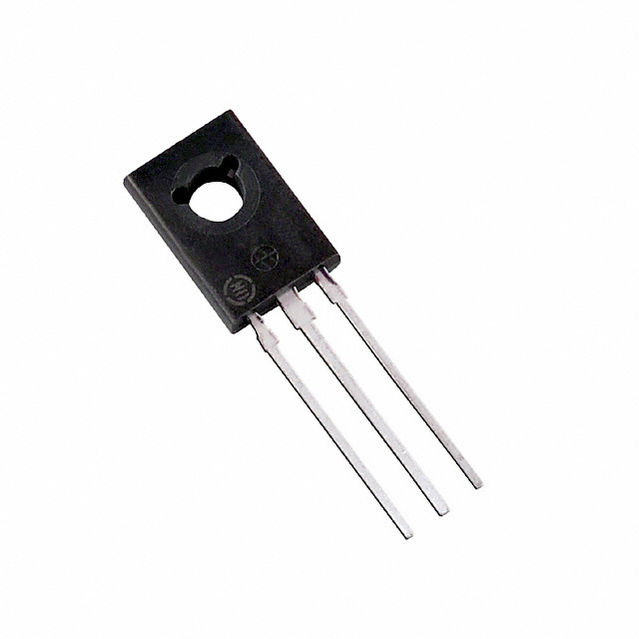

2N6038 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-126-3
Voltage Rating (DC)	60.0 V
Current Rating	4.00 A
Polarity	NPN
Power Dissipation	40 W
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	4A
hFE Min	750 @2A, 3V
hFE Max	15000
Input Power (Max)	40 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	7.74 mm
Size-Width	2.66 mm
Size-Height	11.04 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
