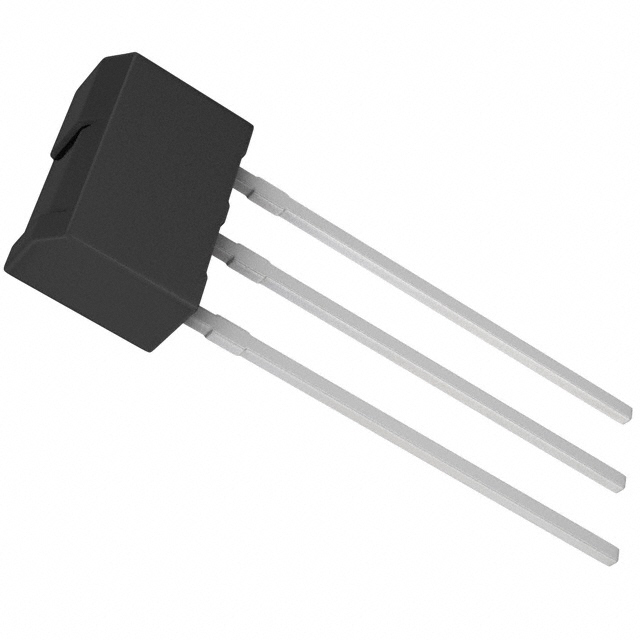

Image is for your reference only,please check specifications for details
Updated at 17/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Bipolar (BJT) Transistor PNP 80V 700mA 100MHz 1W Through Hole ATV
2SB1238TV2R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | SIP-3 |
| Voltage Rating (DC) | -80.0 V |
| Current Rating | -700 mA |
| Polarity | PNP |
| Power Dissipation | 1000 mW |
| Breakdown Voltage (Collector to Emitter) | 80 V |
| Continuous Collector Current | 0.7A |
| hFE Min | 180 @100mA, 3V |
| hFE Max | 180 @100mA, 3V |
| Rating Power (Max) | 1 W |
| Operating Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 1 W |
| Show | |
| Size-Length | 6.8 mm |
| Size-Width | 2.5 mm |
| Size-Height | 4.4 mm |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Box (TB) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
