Description

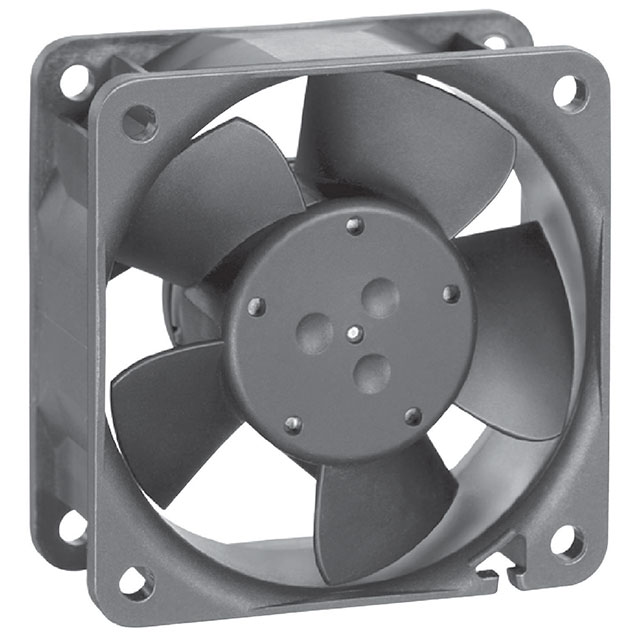

- Fan of fiberglass reinforced plastic. PBTP housing, PA impeller. Electronically commutated DC motor. Clockwise rotation viewed from rotor, air output over struts. Electrical connection via two leads 22 AWG, TR 64, 12.2" (310 mm).
- **Features:**
- * Electronically Communicated External Rotor Motor
- * Fully Integrated Communication Electronics
- * Electronic Protection Against Reverse Polarity, Blocking and Overloading
- * Ball Bearings
- * Fiberglass Reinforced PBTP Plastic Housing
- * Fiberglass Reinforced PA Plastic Impeller
- * Mounting from Either Face Using Four 3.7 mm Holes
- * Air Exhaust Over Struts
- Counterclockwise Rotation Looking at Rotor
- * Electrical Connection Via Two 22 AWG TR 64 12.2 In. (310 mm) Long Leads
- 3.04 Oz. (86.2 g)
614NHH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Flange |
| Supply Voltage (DC) | 24.0 V |
| Voltage Rating (DC) | 24.0 V |
| Operating Voltage | 18V ~ 26V |
| Current Rating | 125 mA |
| Power Rating | 3 W |
| Input Voltage (DC) | 24.0 V |
| Power Consumption | 3 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 24 V |
| Supply Voltage | 24 VDC |
| Show | |
| Size-Length | 60 mm |
| Size-Width | 60 mm |
| Size-Height | 60 mm |
| Lead Length | 310 mm |
| Cable Length | 310 mm |
| Size-Thickness | 25 mm |
| Material | Plastic |
| Weight | 65.77 g |
| Operating Temperature | -20℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| Life (Hours) | 60000h @40℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8414596090 |
| ECCN Code | EAR99 |
