Description

Product Details

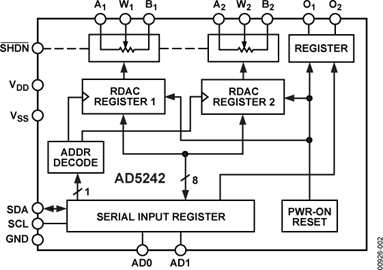

The AD5241 and AD5242 provide a single-/dual-channel, 256-position, digitally controlled variable resistor (VR) device. These devices perform the same electronic adjustment function as a potentiometer, trimmer or variable resistor. Operating from single (+2.7 V to +5.5 V) or dual supplies (±2.7 V), these parts are ideal for applications in Communications, Multi-Media, Video and Audio equipment. Stable 30 ppm/°C, low noise settings result from internal SiCr thin film resistor technology used for the resistor segments. Internal power ON reset to midscale position speeds up initial circuit adjustment. Two programmable logic outputs are available to drive digital loads, gates, LED drivers, analog switches, etc. to save micro-controller pin usage. Additional package address decode pins allow multiple packages to share the same 2-wire I2C bus. Devices are available in the 1.1 mm thin TSSOP 14- and 16-lead packages.
### Features and Benefits
Replaces Potentiometers In New Designs
2-wire I2C Compatible Digital Interface
Low Drift 30ppm/ºC Resistor Tempco

Show

AD5242BRUZ10 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	2.70V (min)
Capacitance Tolerance	±30 %
Supply Current	0.0001 mA
Number of Circuits	2 Circuit
Number of Positions	256 Position
Clock Speed	400kHz (max)
Resistance	10 kΩ
Resistance Tolerance	±30 %
Quiescent Current	100 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 105℃
Temperature Coefficient	±30 ppm/℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
