Description
- PRODUCT DESCRIPTION
- The AD574A is a complete 12-bit successive-approximation analog-to-digital converter with 3-state output buffer circuitry for direct interface to an 8- or 16-bit microprocessor bus. A high precision voltage reference and clock are included on-chip, and the circuit guarantees full-rated performance without external circuitry or clock signals.
- FEATURES
- Complete 12-Bit A/D Converter with Reference and Clock
- 8- and 16-Bit Microprocessor Bus Interface
- Guaranteed Linearity Over Temperature
- 0o8C to +70oC – AD574AJ, K, L
- –55oC to +125oC – AD574AS, T, U
- No Missing Codes Over Temperature
- 35 ms Maximum Conversion Time
- Buried Zener Reference for Long-Term Stability and Low Gain T.C. 10 ppm/8C max AD574AL 12.5 ppm/8C max AD574AU
- Ceramic DIP, Plastic DIP or PLCC Package
- Available in Higher Speed, Pinout-Compatible Versions(15 ms AD674B, 80 ms AD774B; 10 ms (with SHA) AD1674)
- Available in Versions Compliant with MIL-STD-883 and JAN QPL

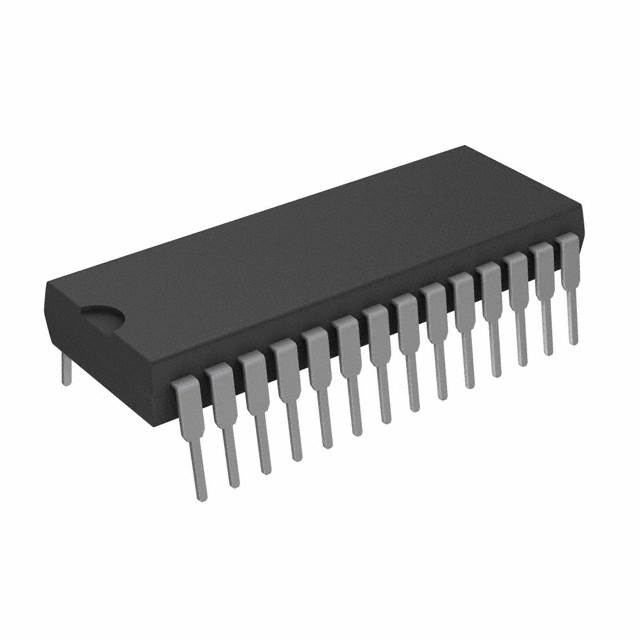

AD574AKN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | PDIP-28 |
| Digital Logic Level | SAR |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 390 mW |
| Power Consumption | 390 mW |
| Resolution (Bits) | 12.0 Bit |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 725 mW |
| Number of Input Channels | 1 Channel |
| Show | |
| Size-Width | 14.73 mm |
| Size-Height | 4.95 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
