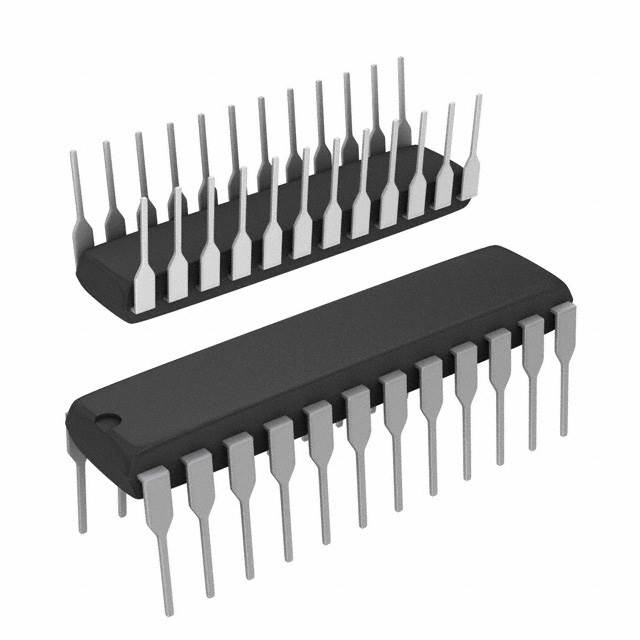

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 8 Bit Analog to Digital Converter 4 Input 1 Flash 24-PDIP
AD7824KN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 24 Pin |
| Case/Package | PDIP-24 |
| Supply Current | 10.0 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Bits | 8 Bit |
| Power Dissipation | 80 mW |
| Sample Rate | 50 ksps |
| Power Consumption | 50 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 80 mW |
| Number of Input Channels | 4 Channel |
| Input Voltage | 5 V |
| Show | |
| Size-Length | 29.59 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
