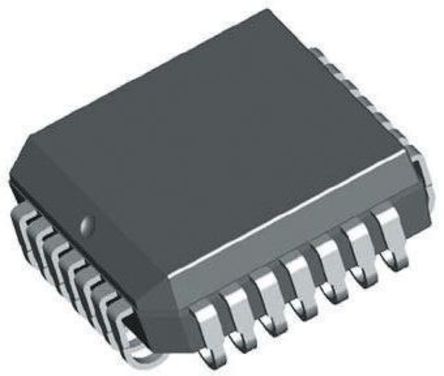

Image is for your reference only,please check specifications for details

Updated at 17/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Analog Devices offers this AD7871JPZ ADC that will easily convert your continuous analog signals into digital data without altering essential content. Its maximum power dissipation is 95 mW. It has a single-ended input signal. This device is based on SAR architecture. This device"s digital interface is parallel|serial. This ADC has a resolution of 14bit. This ADC has an input voltage of ±3 V. Its typical dual supply voltage is ±5 V, with a minimum of ±4.75 V and maximum of ±5.25 V. This ADC has a temperature range of 0 °C to 70 °C.

Show

AD7871JPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	PLCC-28
Digital Logic Level	SAR
Supply Voltage (DC)	4.75V (min)
Supply Current	13.0 mA
Number of Circuits	1 Circuit
Number of Positions	28 Position
Number of Bits	14 Bit
Power Dissipation	50 mW
Sample Rate	83 ksps
Power Consumption	50 mW
Resolution (Bits)	14.0 Bit
Input Impedance	9.00 GΩ
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	95 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	11.58 mm
Size-Width	11.58 mm
Size-Height	3.94 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2016/06/20
