Description

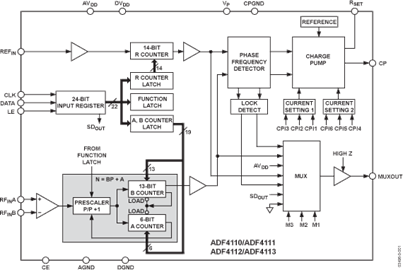

The ADF4113BRUZ is a Frequency Synthesizer that can be used to implement local oscillators in the up and down conversion sections of wireless receivers and transmitters. They consist of low-noise digital PFD (Phase Frequency Detector), a precision charge pump, a programmable reference divider, programmable A and B counters and a dual modulus prescaler (P/P+1). The A (6-bit) and B (13-bit) counters, in conjunction with the dual modulus prescaler (P/P+1), implement an N divider (N = BP+A). In addition, the 14-bit reference counter (R Counter), allows selectable REFIN frequencies at the PFD input. A complete PLL (Phase-Locked Loop) can be implemented if the synthesizer is used with an external loop filter and VCO (Voltage Controlled Oscillator). Control of all the on-chip registers is via a simple 3-wire interface. The device operates with a power supply ranging from 2.7 to 5.5V and can be powered down when not in use.
Separate charge pump supply (VP) allows extended tuning voltage in 3V systems
Programmable charge pump currents
Programmable dual modulus prescaler 8/9, 16/17, 32/33, 64/65
Programmable anti backlash pulse width
3-wire serial interface
Analog and digital lock detect
Hardware and software power-down mode

Show

ADF4113BRUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Frequency	4 GHz
Supply Voltage (DC)	2.70V (min)
Number of Outputs	1 Output
Supply Current	8.5 mA
Number of Circuits	1 Circuit
Number of Positions	16 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	5A991.b
