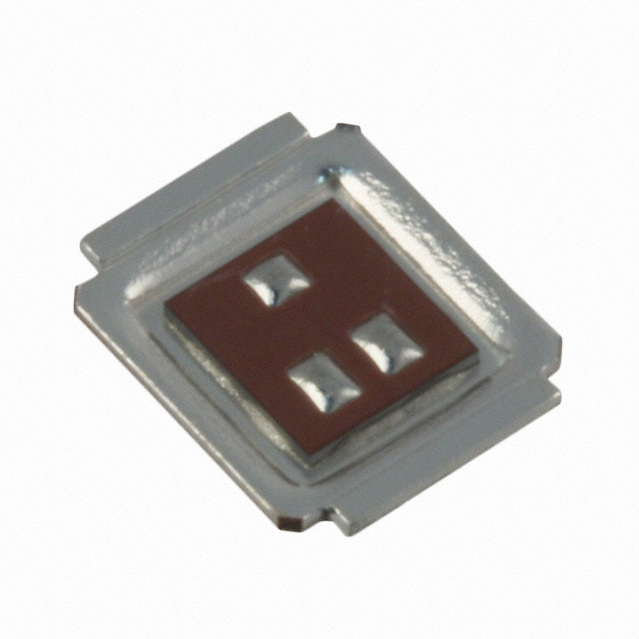

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRF6648 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	DirectFET™ Isometric MN
Voltage Rating (DC)	60.0 V
Current Rating	86.0 A
Power Dissipation	2.8 W
Part Family	IRF6648
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	86.0 A
Rise Time	29 ns
Input Capacitance (Ciss)	2120pF @25V(Vds)
Input Power (Max)	2.8 W
Fall Time	13 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
