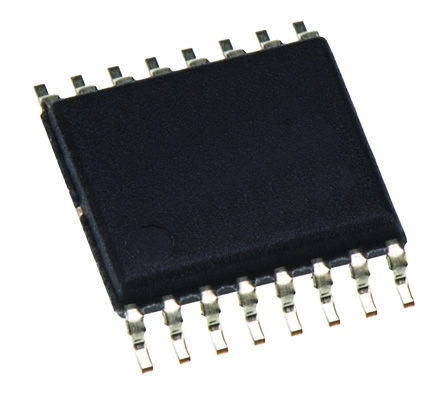

Image is for your reference only,please check specifications for details

ADS1220IPW - TI
Manufacturer:
TI
ManyChip's Part#:
MC2529800
Category:
Analog to Digital, ADC IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
24Bit, 2KSPS, 4CH, Low-Power, Delta-Sigma ADC with PGA and Voltage Reference 16-TSSOP -40℃ to 125℃
Stock Locations:
Availability:
32 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.78

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS1220IPW is a precision, 24-bit Analogue-to-digital Converter (ADC) IC, offers many integrated features to reduce system cost and component count in applications measuring small sensor signals. The device features two differential or four single-ended inputs through a flexible input multiplexer (MUX), a low-noise, programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, a low-side switch and a precision temperature sensor. The device can perform conversions at data rates up to 2000 samples-per-second (SPS) with single-cycle settling. At 20 SPS, the digital filter offers simultaneous 50 and 60Hz rejection for noisy industrial applications. The device supports measurements of pseudo- or fully-differential signals when using the PGA.
Low Current Consumption
1 to 128V/V Programmable Gain
Up to 2kSPS Programmable Data Rate
Up to 20-bit Effective Resolution
Simultaneous 50 and 60Hz Rejection at 20 SPS with Single-Cycle Settling Digital Filter
Two Differential or Four Single-ended Inputs
10µA to 1.5mA Dual-matched Programmable Current Sources
5ppm/°C (Typical) Drift Internal 2.048V Reference
Internal 2% Accurate Oscillator
0.5°C (Typical) Accuracy Internal Temperature Sensor
SPI™-compatible Interface (Mode 1)
Green Product, No Sb/Br
ESD sensitive device, take proper precaution while handling the device, ESD damage can range from subtle performance degradation to complete device failure.

Show

ADS1220IPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	2.30V (min)
Supply Current	540 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	24 Bit
Power Dissipation	2.1 mW
Sample Rate	2 ksps
Power Consumption	1.4 mW
Number of ADCs	1 ADC
Number of Inputs	2, 4 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	4 Channel
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
