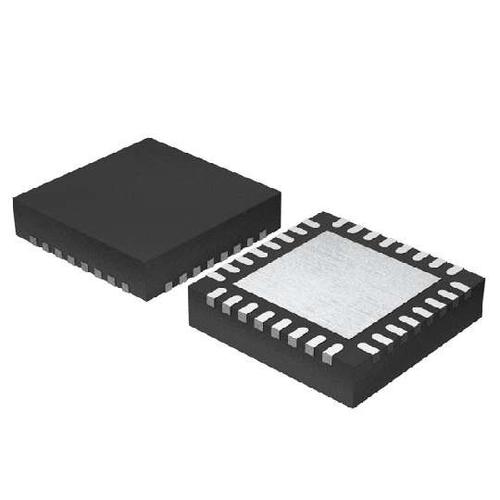

- ADS7953SBRHBT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC44336676
-
Category:Analog to Digital, ADC IC
-
Package:VQFN-32
-
Datasheet:Datasheet 3D Model
-
Description:12Bit, 1MSPS, 16Channel, Single-Ended, microPower SAR ADC with Serial I/F 32-VQFN -40℃ to 125℃
-
Stock Locations:
-
Availability:225 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 472.75
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS79xx is a 12/10/8-bit multichannel analog-to-digital converter family. The following table shows all twelve devices from this product family.
- The devices include a capacitor based SAR A/D converter with inherent sample and hold.
- The devices accept a wide analog supply range from 2.7 V to 5.25 V. Very low power consumption makes these devices suitable for battery-powered and isolated power supply applications.
- A wide 1.7-V to 5.25-V I/O supply range facilitates a glue-less interface with the most commonly used CMOS digital hosts.
- The serial interface is controlled by CS and SCLK for easy connection with microprocessors and DSP.
- The input signal is sampled with the falling edge of CS. It uses SCLK for conversion, serial data output, and reading serial data in. The devices allow auto sequencing of preselected channels or manual selection of a channel for the next conversion cycle.
- There are two software selectable input ranges (0 V to 2.5 V and 0 V to 5 V), four individually configurable GPIOs ( in case of TSSOP package devices), and two programmable alarm thresholds per channel. These features make the devices suitable for most data acquisition applications.
- The devices offer an attractive power-down feature. This is extremely useful for power saving when the device is operated at lower conversion speeds.
- The 16/12-channel devices from this family are available in a 38-pin TSSOP and 32 pin VQFN package and the 4/8-channel devices are available in a 30-pin TSSOP and 24 pin VQFN packages.
ADS7953SBRHBT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | VQFN-32 |
| Supply Voltage (DC) | 2.70V (min) |
| Number of Circuits | 1 Circuit |
| Number of Positions | 32 Position |
| Number of Bits | 12 Bit |
| Power Dissipation | 14.5 mW |
| Sample Rate | 1 Msps |
| Power Consumption | 11.5 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 16 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 16 Channel |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 2.5V, 5V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
