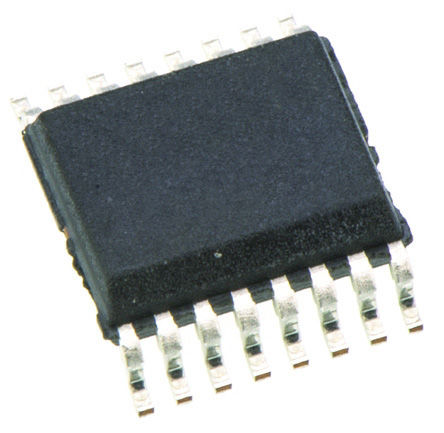

ADS8341E - TI
Manufacturer:
TI
ManyChip's Part#:
MC4015146
Category:
Analog to Digital, ADC IC
Package:
SSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ADS8341E Analog to Digital Converter, 16Bit, 100KSPS, Single, 2.7V, 5.25V, SSOP
Stock Locations:
Availability:
2,130 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS8341E is a 4-channel, 16-bit sampling Analog-to-digital Converter (ADC) with a synchronous serial interface. Typical power dissipation is 8mW at a 100kHz throughput rate and a 5V supply. The reference voltage (VREF ) can be varied between 500mV and VCC, providing a corresponding input voltage range of 0V to VREF. The device includes a shutdown mode that reduces power dissipation to under 15µW. The ADC is tested down to 2.7V operation. It also features low power, high speed and an on board multiplexer make the ADC ideal for battery-operated systems. The serial interface also provides low-cost isolation for remote data acquisition.
Pin for pin with ADS7841
4-channel single-ended or 2-channel differential input
Serial interface
Green product and no Sb/Br

Show

ADS8341E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SSOP-16
Digital Logic Level	SAR
Supply Voltage (DC)	2.70V (min)
Supply Current	1.50 mA
Number of Circuits	1 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Number of Bits	16 Bit
Power Dissipation	7.5 mW
Sample Rate	100 ksps
Power Consumption	3.2 mW
Number of ADCs	1 ADC
Number of Inputs	2, 4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	10 mW
Number of Input Channels	4 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
Input Voltage	2.5V, 5V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
