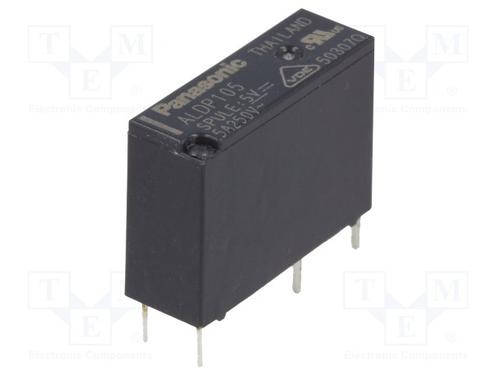

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ALDP105 is a slim size Power Relay with 1-form-A AgNi contact. This LD-P (ALD-P)-series power relay features sealed type protective construction, through hole mounting, solder relay terminal with non-latching coil.
Excellent heat resistance
Excellent tracking performance
High insulation resistance
1000MR (at 500V DC) Initial insulation resistance
750Vrms for one minute Break down voltage between open contacts
20cpm Maximum operating speed
-40 to 85°C Ambient temperature range
5 to 85% RH Humidity

Show

ALDP105 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	PCB
Contacts Type	SPST-NO
Contact Current Rating	5 A
Coil Voltage	5 VDC
Coil Current	40 mA
Coil Resistance	125 Ω
Coil Voltage (DC)	5 V
Coil Power	200 mW
	Show
Size-Height	15.7 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
