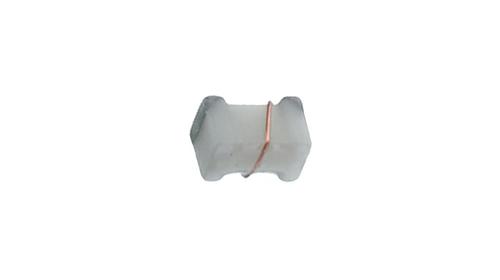

Image is for your reference only,please check specifications for details

B82498B1472J - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC89445174
Category:
Inductor Surface Mount
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
Inductor General Purpose Chip Wirewound 4.7uH 5% 7.96MHz 20Q-Factor Ferrite 90mA 3.8Ω DCR 0805 Automotive T/R
Stock Locations:
Availability:
2,071 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B82498B1472J is a surface mount High Frequency Inductor features cubic coil with ceramic or ferrite core. This B82498B inductor comes with partially plastic-sealed windings, winding ends welded to terminals. This Inductor"s terminals are made of Al2O3 ceramic or ferrite base and thick-film coating of Ag/Pd/Pt termination. Supports 150MHz resonance frequency and ±5% of inductance tolerance. It is suitable for reflow soldering.
High Q factor
High resonance frequency
Close inductance tolerance

Show

B82498B1472J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Current Rating	90.0 mA
Capacitance Tolerance	5 %
Inductance	4.7 µH
Self Resonant Frequency	150 MHz
Q-Factor	20.0
Resistance	3.80 Ω
Resonant Frequency	150 MHz
Inductance Tolerance	±5 %
Test Frequency	7.96 MHz
Current Rating (DC)	90 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	3.8 Ω
	Show
Size-Length	2.2 mm
Size-Width	1.2 mm
Size-Height	1.4 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Obsolete
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
