BAT1503WE6327HTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC3042678
Category:
Schottky Diode
Package:
SOD-323-2
Datasheet:
Datasheet 3D Model
Description:

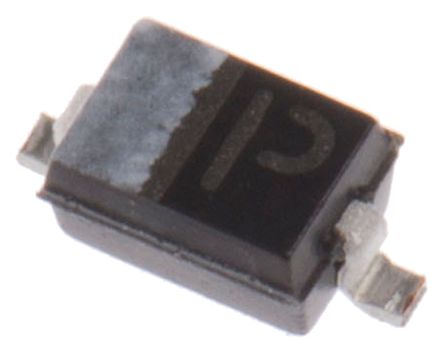

INFINEON BAT1503WE6327HTSA1 RF Schottky Diode, Single, 4V, 110mA, 410mV, 0.35pF, SOD-323
Stock Locations:
Availability:
3,460 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT 15-03W E6327 is a Silicon Schottky Diode with single configuration. It is low barrier type device for DBS mixer applications up to 12GHz, phase detectors and modulators.
Low noise figure
-55 to 150°C Operating temperature range

Show

BAT1503WE6327HTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Voltage Rating (DC)	4.00 V
Current Rating	110 mA
Capacitance	0.35 pF
Output Current	≤110 mA
Load Current	0.11 A
Forward Voltage	0.41 V
Polarity	Standard
Power Dissipation	100 mW
Forward Current	110 mA
Maximum Forward Voltage (Max)	410 mV
Forward Current (Max)	110 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	1.7 mm
Size-Width	1.25 mm
Size-Height	1.05 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
