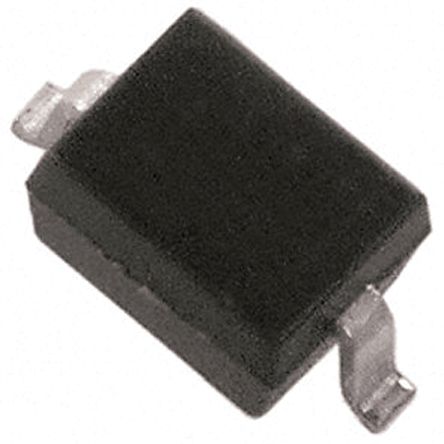

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
High current rectifier Schottky diode with extreme low VF drop (typ. 0.12V at IF = 10mA)
For power supply applications
For clamping and protection in low voltage applications
For detection and step-up-conversion
Pb-free (RoHS compliant) package1)
Qualified according AEC Q101

Show

BAT60BE6327HTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Voltage Rating (DC)	10.0 V
Current Rating	3.00 A
Output Current	≤3.00 A
Number of Positions	2 Position
Forward Voltage	0.48 V
Polarity	Standard
Power Dissipation	1.35 W
Forward Current	3 A
Max Forward Surge Current (Ifsm)	5 A
Maximum Forward Voltage (Max)	600 mV
Forward Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	1350 mW
	Show
Size-Length	1.7 mm
Size-Width	1.25 mm
Size-Height	0.85 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
