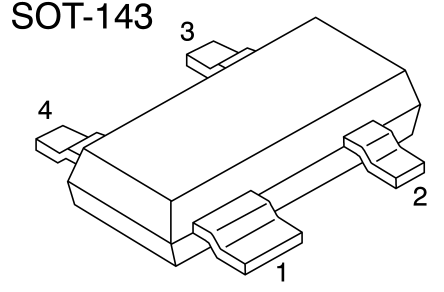

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Low barrier diode for detectors up to GHz frequencies
- Pb-free (RoHS compliant) package
BAT62 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SC-79-2 |
| Power Dissipation | 100 mW |
| Maximum Forward Voltage (Max) | 1 V |
| Forward Current (Max) | 20 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | 150℃ (Max) |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.3 mm |
| Size-Height | 0.9 mm |
| Product Lifecycle Status | Not Recommended |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
