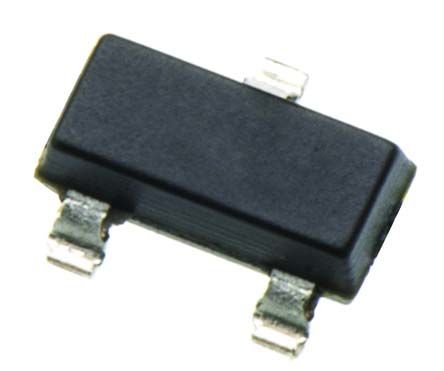

Image is for your reference only,please check specifications for details

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BC848BLT1G is a NPN general purpose Bipolar Transistor designed for use in linear and switching applications. The device is housed in the package which is designed for lower power surface-mount applications.
Moisture sensitivity level-1
AEC-Q101 qualified and PPAP capable
>4000V Human body model and >400V machine model - ESD rating

Show

BC848BLT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Frequency	100 MHz
Voltage Rating (DC)	30.0 V
Current Rating	100 mA
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	300 mW
Breakdown Voltage (Collector to Emitter)	30 V
Continuous Collector Current	0.1A
hFE Min	200
Input Power (Max)	300 mW
DC Current Gain (hFE)	200
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.94 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
