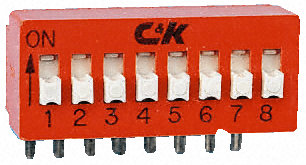

BD04AV - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC1331285
Category:
DIP Switch, SIP Switch
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
C & K COMPONENTS BD04AV DIP / SIP Switch, 4Circuits, SPST, Through Hole, BD Series, DIP Unsealed, 24VDC
Stock Locations:
Availability:
47 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.6

Updated at 16/05/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BD series Standard Profile DIP Switch with extended actuator for easy actuation. Open bottom construction allows for solder washing without the need for tape seal. Suitable for use with address switch for industrial controls, logic switching for computers and peripherals, function controlling for numerous applications.
10000 Make-and-break cycles mechanical and electrical life at full load each circuit
Below 50mR Typical initial contact resistance at 2 to 4VDC 100mA
10⁹R Minimum insulation resistance
500VRMS Minimum dielectric strength at sea level between adjacent terminals
5pF Maximum capacitance between adjacent terminals
Glass filled polyester (PBT), flame retardant (UL94V-0) case and cover
Glass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0) actuator
Gold over nickel over phosphor bronze contacts
Matte-tin over nickel over phosphor bronze terminals
-40 to 85°C Operating temperature

Show

BD04AV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	DIP
Pin Pitch	1.27 mm
Voltage Rating (DC)	25 V
Current Rating	100 mA
Insulation Resistance	1000 MΩ
Contacts Type	SPST
Number of Circuits	4 Circuit
Number of Positions	4 Position
Contact Resistance	50 mΩ
Contact Current Rating	100mA @25VDC
Current Rating (Max)	0.1A @5VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	5 VDC
Voltage Rating (DC Max)	25 V
Maximum Contact Resistance (Max)	<50 mΩ
	Show
Size-Length	12.19 mm
Size-Width	7.6 mm
Size-Height	9.65 mm
Contact Material	Phosphor Bronze
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
